7” Digital Wireless Quad Bus Truck and Heavyduty Camera Monitor Rear View System

Specifications Of Monitor

1, Panel: 7″ digital panel
2, Resolution: 800*R.G.B*480
3, Screen ratio: 16:9
4, Backlight: LED, Luminance: 300 cd/m2
5, Contrast: 500:1
6, Viewing angle: UP—50°,DOWN—70°,LEFT—70°,RIGHT—70°
7, System: PAL/NTSC automatically
8,OSD Control: Brightness, contrast, saturation, volume, rotation, language (English, simplified Chinese)
9, Anti-Shock level: 4G

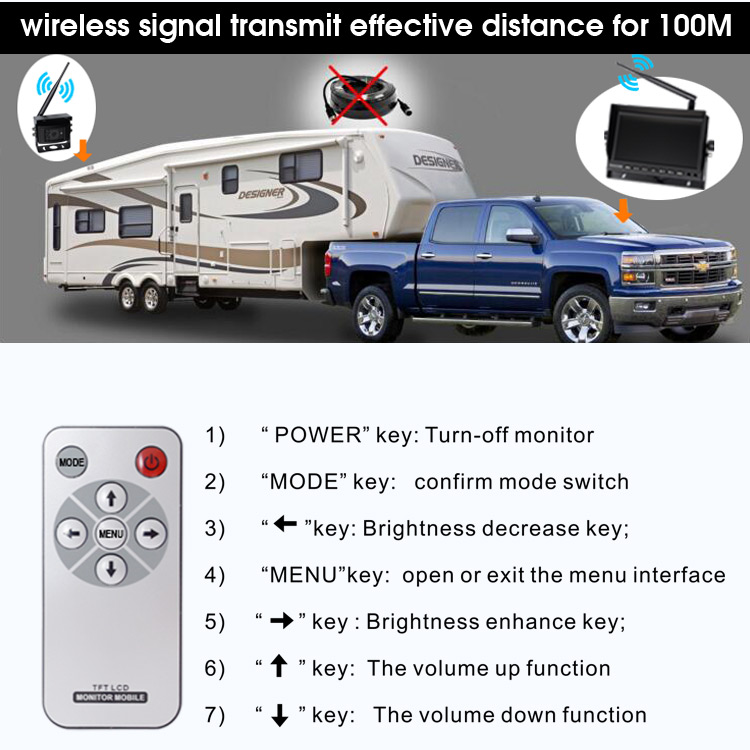

10, 2.4G wireless transmitting distance: 100M in open area
11, Power supply: DC 12V
12, Power consumption: ＜5W
13, Maximum current: ＜550mA
14, Working temperature: -10℃ to 60℃
15, Storage temperature: -20℃ to 70℃
16, Size:180mm*121mm*24mm
17, Weight: 630g
18, AV input: 4 channels 2.4G wireless AV input
19, Accessories: 1PC 2.4G wireless camera, remoter, 2.4G antenna,3M 2.4G antenna extension cable,DC5.5 male extension cable,hexagon wrench,sun shield and bracket,user manual

Specifications Of Camera

1.Image Type: 1/3 Color SONY CCD
2.Horizontal Resolution: 420TV Lines
3.Effective pixel: PAL:500(H)X582(V)
4.Usable lllumination:0Lux(Built ln 10 IR LED)
5.Viewing angle: 120°
6.Waterproof: IP67
7.Operation Temperature : -20°C~+70°C RH95%Max
8.Storage Temperature : -30°C~+80°C RH95%Max
9.Dimensions: 78(W)X48(D)X58(H)mm

Application

Excavator

Crane

Truck

Bus

Concrete mixer

Lorry, Farm vehicle

Fire truck

Sedan

RV

Vessel

fire truck

Farm Tractor

Trailer

Trailer Truck

product type Introduce

Our factory is dedicated to the following electronic products for driving/parking safety

• OE style rearview mirror monitor

• DVR rearview mirror

• rearview mirror camera kit

• 180-190 degree horizontal rear/front camera

• universal/specific camera

• special feature camera

• truck/bus rearview/surveillance system

• standalone car monitor

Guangzhou Parkvision Auto Technology Co.,Ltd. Located in Baiyun District of Guangzhou China. it existence on Oct 10^th,2009, with the mission to provide safety and joy to international automobile users and their families by bringing the excellent PJ-AUTO vehicle safety &in-car entertainment electronic products out of China to the global market.

After years’ efforts, Parkvision has become one of the leading manufacturers in driving/parking safety industry. It now have well-orignized professional teams for R&D, production,quality control,and service world. It supply to the global market our CE,FCC,ROHS and E-MARK certified products, including OE Quality Rear View Mirror Monitor, EC Auto Dimming Mirrors,CCD/CMOS Rear/Front View Cameras, Car DVR Mirror Monitor,360°Birdview System, etc. Its customers are mainly car dealers, car manufactures(Hyundai,Renault,etc.),and chain tuning stores.
