360 Degree Bird Around Multi View Camera Car Camera Parking System

Features of Control Box

1.Supply Voltage: 12V (8~30V)
2.Consumption Current: <500 mA
3.Operation Tempreture: -20~75 ℃/ ℉
4.Storge Tempreture: -40~80 ℃/ ℉
5.Water Proof:IP67

360° Bird View System Disign Purpose

Birdview parking assistance system can collect the video images around the car simultaneously by four wide angle fish-eye cameras installed on the front/ rear/left/right side of the car, after the imageis processed, split and jointed by the image software, a 360 degree's panoramic view is formed and timely transmitted to the display equipment on the center console. With the help of birdview parking assist system, the drivers are are able to intuitively catch sight of the location as well as the obstacles around just sitting in the vehicle and leisurely parking or bypassing under the complex road conditions, which effectively decreases the occurrence of scratch, crash, downthrow and other traffic accidents.

Features of Camera

1.Image Sensor: PC1089N
2.Optical Size: 1/3" inch
3.Pixel Pitch: 6.35μm*7-4μm
4.Effective Pixels: 720(H)*480(V) pixels
5.Horizontal Resolution: 580 TV Lines
6.Video Format: PAL/ NTSC
7.S/ N Ratio: >48dB
8.Dynamic range: >72dB
9.Auto Electronic Exposure: Electronic Rolling Shutter
10.Minimum Illumination: 0.1 Lux
11.View Angle: 180°
12.Video Output: 1.0 OVP-P/75Ω

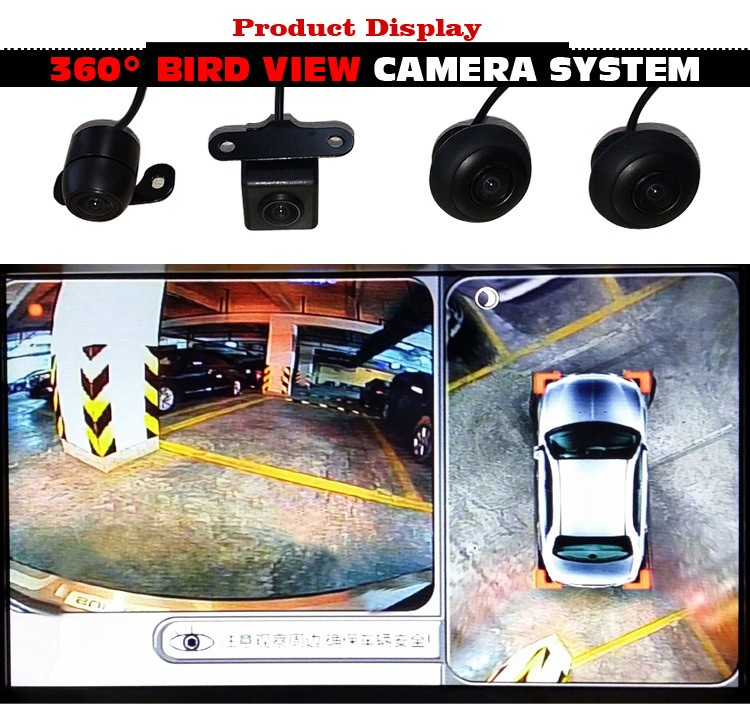

360° Bird View System Parts Pictures

Guangzhou Parkvision Auto Technology Co.,Ltd. Located in Baiyun District of Guangzhou China. it existence on Oct 10^th,2009, with the mission to provide safety and joy to international automobile users and their families by bringing the excellent PJ-AUTO vehicle safety &in-car entertainment electronic products out of China to the global market.

After years’ efforts, Parkvision has become one of the leading manufacturers in driving/parking safety industry. It now have well-orignized professional teams for R&D, production,quality control,and service world. It supply to the global market our CE,FCC,ROHS and E-MARK certified products, including OE Quality Rear View Mirror Monitor, EC Auto Dimming Mirrors,CCD/CMOS Rear/Front View Cameras, Car DVR Mirror Monitor,360°Birdview System, etc. Its customers are mainly car dealers, car manufactures(Hyundai,Renault,etc.),and chain tuning stores.
