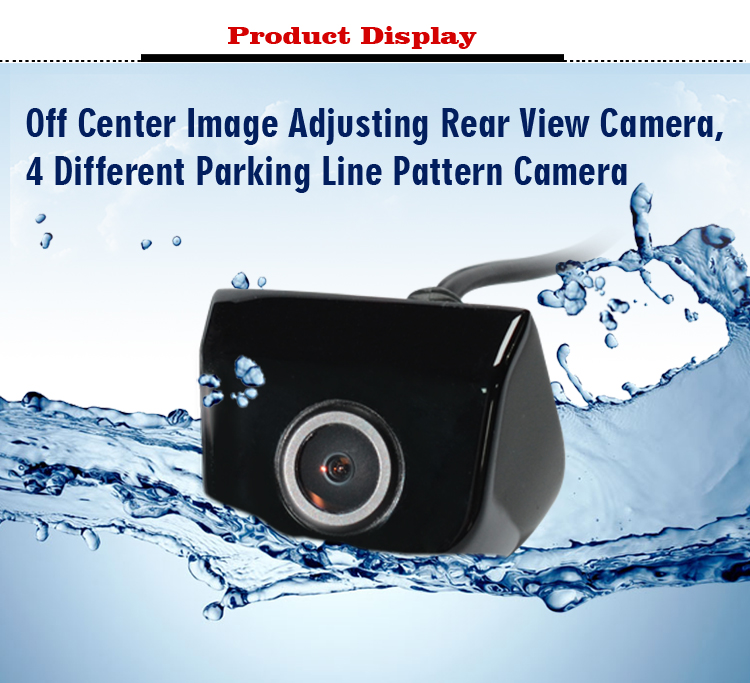

Off Center Image Adjusting Bus Rear View Camera system, 4 Different Parking Line Pattern Camera

Design Purpose:

Most specific rear view cameras are installed by replacing a license lamp, either on the left or on the right, giving an off-center image on screen, which is frustrating and misleading. Our PRO series cameras provide an easy solution with a single button for image adjustment. Partial universal cameras have the same problem, so PJ-AUTO developed several universal models with this feature, too. Also the installer or user can select different parking lines according to the width of the vehicle, and switch the image horizontally or vertically according to the mounting. All operations can be done very easily by the button.

Special Features:
Horizontal image adjusting
Vertical image adjusting
4 x Parking lines for selection according to different vehicle size
Mirror / normal view switch
Easy to cmplete the above operations by a single button
110° horizontal view angle dtandard

Specification:

Image Sensor: 1/3" Color CMOS
Resolution: 650TV Lines
Image Adjustment Solution: PJ1510N3
Min. Illumination:0.2lux
TV Sytem: NTSC ( PAL optional )
Power Supply: 12V
Horizontal View Angle: 110° standard, 140° Optional
Parking Lines: Available in 4 types for vehicles with different width, seletable with button
Mirror Image Switch: Available
Verticale Image Switch: Available
Signal System: NTSC ( PAL optional ) switchable

Products picture details:
