Brand Name : | Parkvision |
Model Number : | PJ-190CM |
Certification : | CE, FCC, RoHS |
Payment Terms : | L/C, T/T, Western Union, Paypal |
Supply Ability : | 20000 PCS/ Month |
Delivery Time : | 7-10 working days |
Price : | Negotiation |

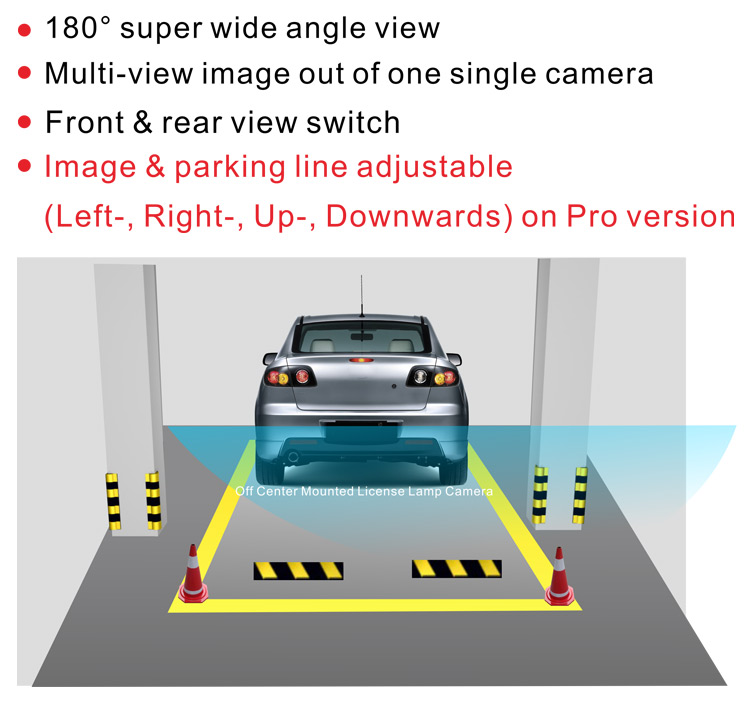

1 / 3 Inch CMOS Multi View Rear Camera 190 Degree With Parking Line Adjustable
Display Modes:
There are 6 different display modes in the camera, and the user can
easily switch the mode by pressing the button. The default mode is
180° full view mode, the top view + regular view which recommended
for reversing straight backwards towards a wall, 130° regular view
mode which recommended for reversing straight backwards. And
zoom-in corner view mode which recommended only when reversing
towards a passage or there's suspicious obstacle at the corner, top
view mode which recommended when approaching a wall or a big
standing obstacle, and the corner view + top view which recommended
only when reversing in crowed surroundings.
190° Rearview Car Camera Specification
Image Sensor: | 1/3" Color Digital CMOS |
Pixels: | 1280*720 |
Image Adjustment Solution: | PJ1510N1 |
Min. Illumination: | 0.2lux |
TV Sytem: | NTSC ( PAL optional ) |
Power Supply: | DC 12V |
View Angle: | 180° Horizontal, 190° Diagonal |
Univeral Type: | Available |
Specific Type | Available |
Parking Line & Iamge Adjusting:
Image & each parking line for accurate adjustment: Left-, Right-, Up-, Downwards via a keyboard on Pro Version, the adjustment shows as the below photos, Off center image & incorrect parking line before adjustment, centered image aferter adjustment and correct parking line after adjustment.
![]() |
